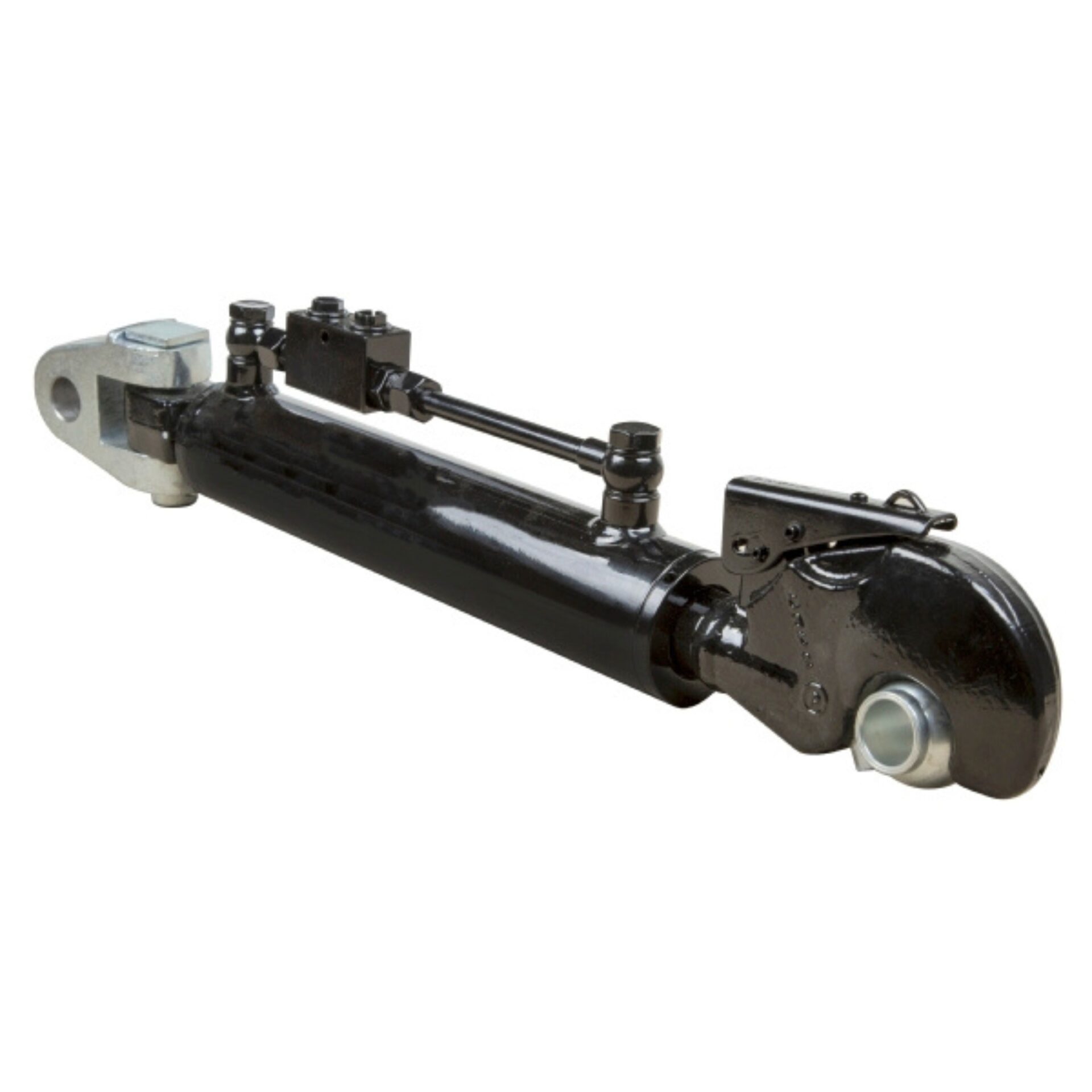

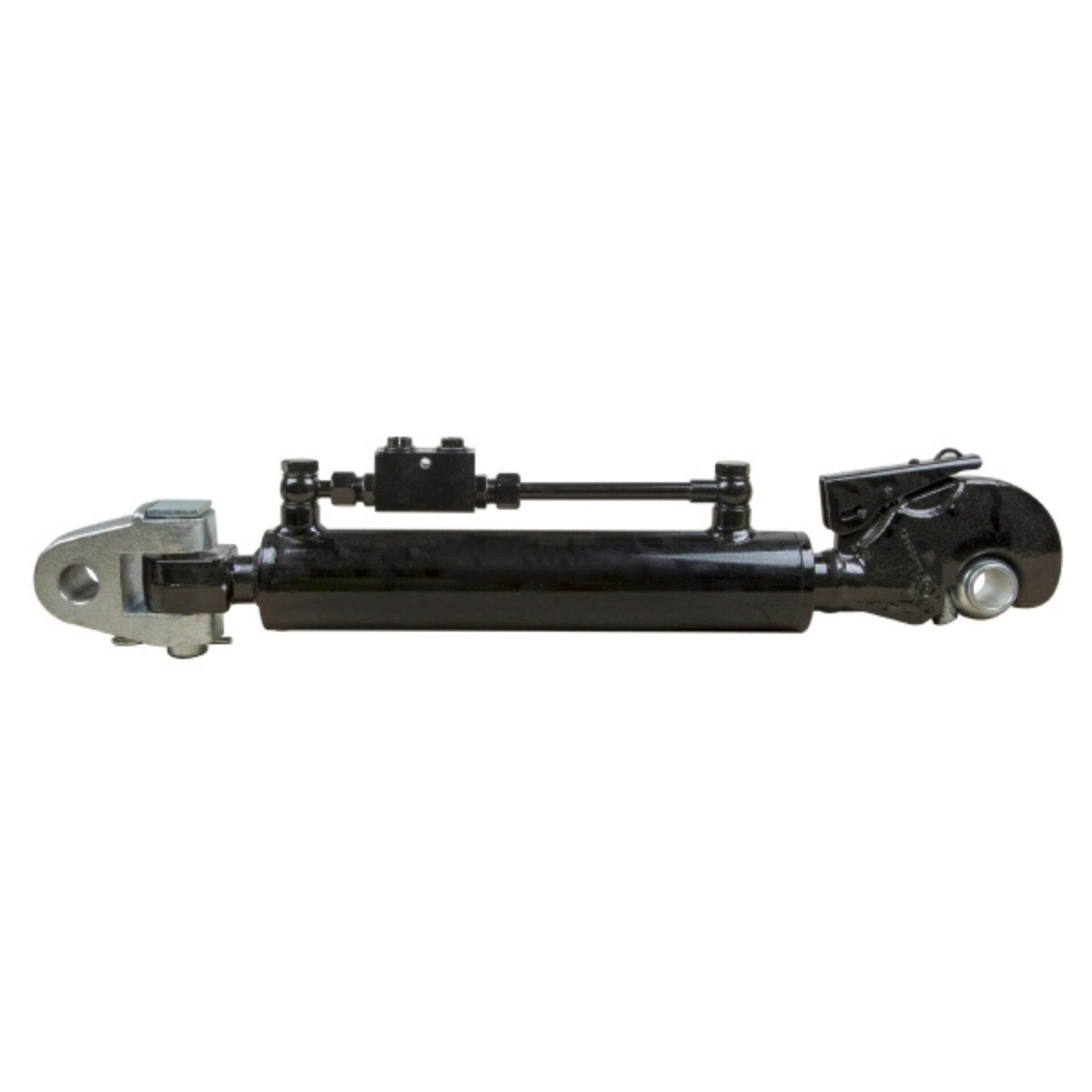

Standard Knuckle Hydraulic Top Link 22″ with Anti Creep Cat 2×2

Standard Knuckle Hydraulic Top Link 22″ with Anti Creep Cat 2×2

• Cat: 2×2
• Rod: 40mm
• Pin Hole: 25.4mm
• Maximum Load: 1100kg
• Working Pressure: 200 Bar
• Max Pressure: 250 Bar
• Finish: Black Primer
• Barrel Inner Diameter: 60mm
• Barrel Outer Diameter: 70mm
• Stroke: 205mm
• Open Centre: 765mm (30in)
• Closed Centre: 560mm (22in)
• Weight: 11.5kg
• Long Description:
  • Hydraulic top link comes with knuckle eye on fixed end and quick attach ball on rod end
  • Pre-assembled with anti-creep safety device to prevent damage or injury in a case of hose bursting



Weight	11.5 kg
