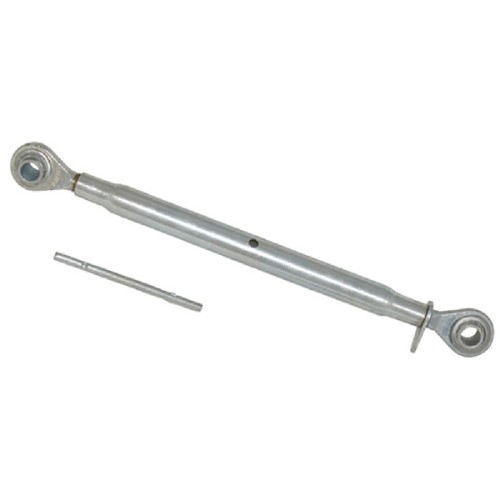

Toplink 16″ CAT 1:2

Toplink 16″ CAT 1:2

• Forged top link
• Zinc plated
• Adjusts height and angle of equipment behind tractor
• Max pivot angle: 10°
• Dichromate plated centre body
• Forged steel top link ends
• 5in travel on each end

Specifications

• Open Centre: 770mm
• Closed Centre: 520mm
• Ball Width: 44mm – 51mm
• End Type 1: Ball
• End Type 2: Ball
• Suitability: Universal
• Series: CAT 1:2
• Tube Size: 406mm – 16in
• Colour: Silver
• Width: 51mm
• Hole Diameter: 19.05mm / 25.4mm
• Weight: 4.06kg
• Thread Size: 1 1/8in UNC
• Height: 90mm
• Thread Length: 150mm
• Depth: 585mm

Weight	4.06 kg
Dimensions	15 × 9 cm
