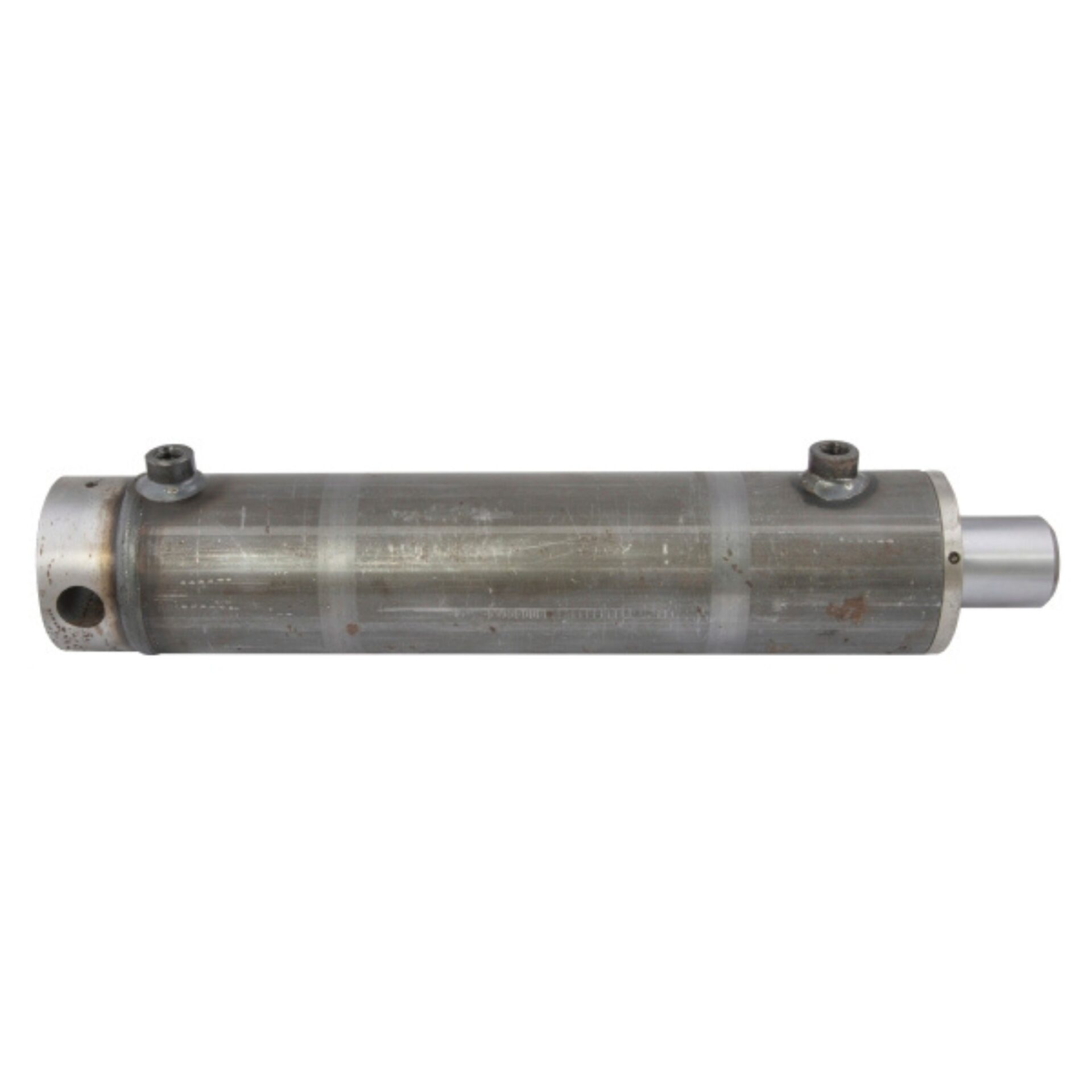

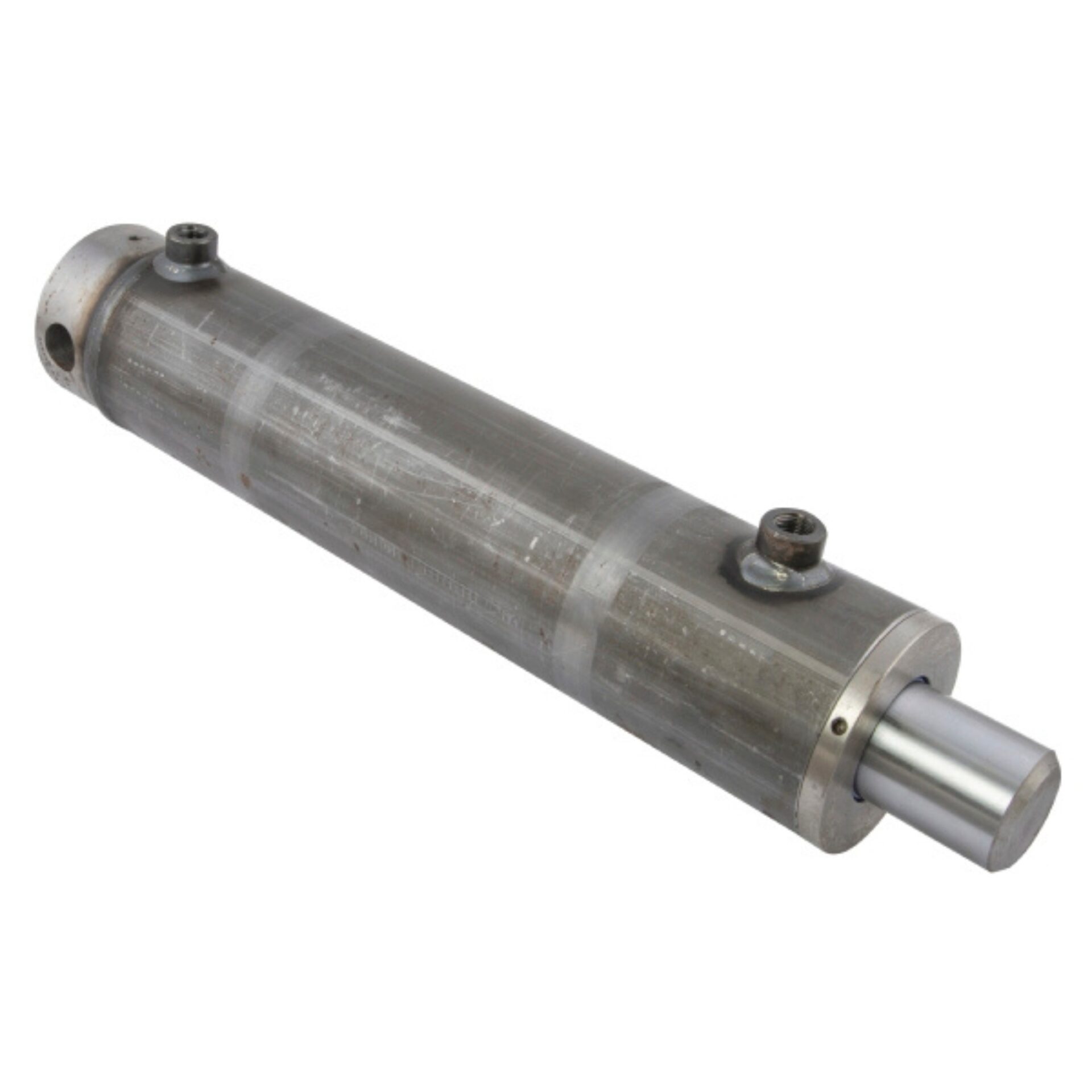

Double Acting Hydraulic Log Splitter Ram 20″ x 90 x 50mm

Double Acting Hydraulic Log Splitter Ram 20″ x 90 x 50mm

The double acting hydraulic log splitter ram 20″ x 90 x 50mm is a cylinder that uses pressurized fluid to power movement in both directions.

Product details:

• Working pressure: 180 Bar (2610 PSI)
• Max pressure: 250 Bar (3625 PSI)
• Ports: 3/8in BSP
• Finish: Self colour
• Loads calculated at 140 Bar – 2000 PSI
• Stroke: 305mm
• Closed Centre: 515mm
• Rod: 50mm
• Barrel Inner Diameter: 90mm
• Barrel Outer Diameter: 100mm
• Closed Centre: 515mm
• Capacity Push-Pull: 9000Kg/6200Kg
• Pin Hole: 25.4mm
• Weight: 18kg

Looking for a similar product? View our Malone log splitter.

Weight	18 kg
