Check Valve Kit – 20″ Ram & 26″ Top Link

Check Valve Kit – 20″ Ram & 26″ Top Link

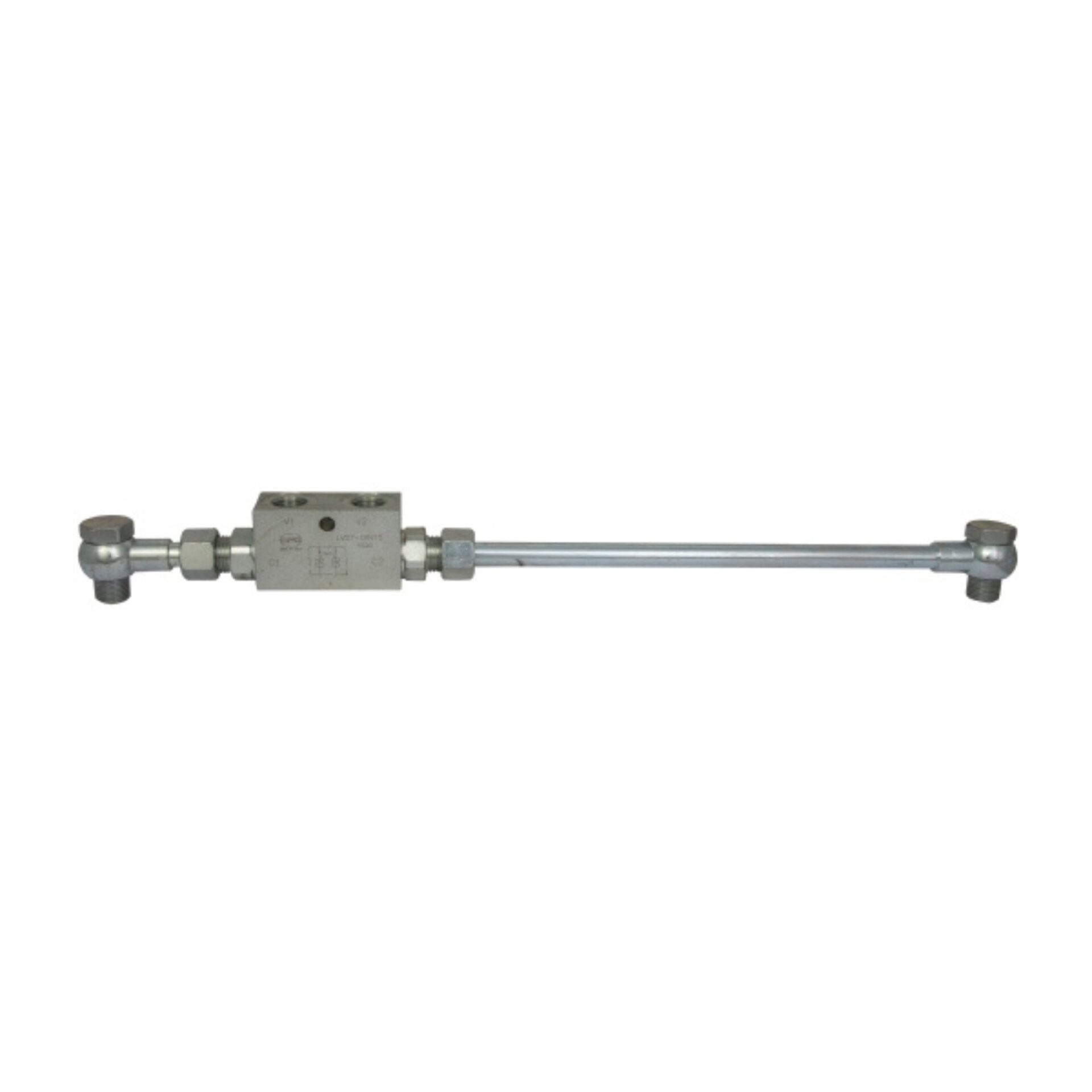

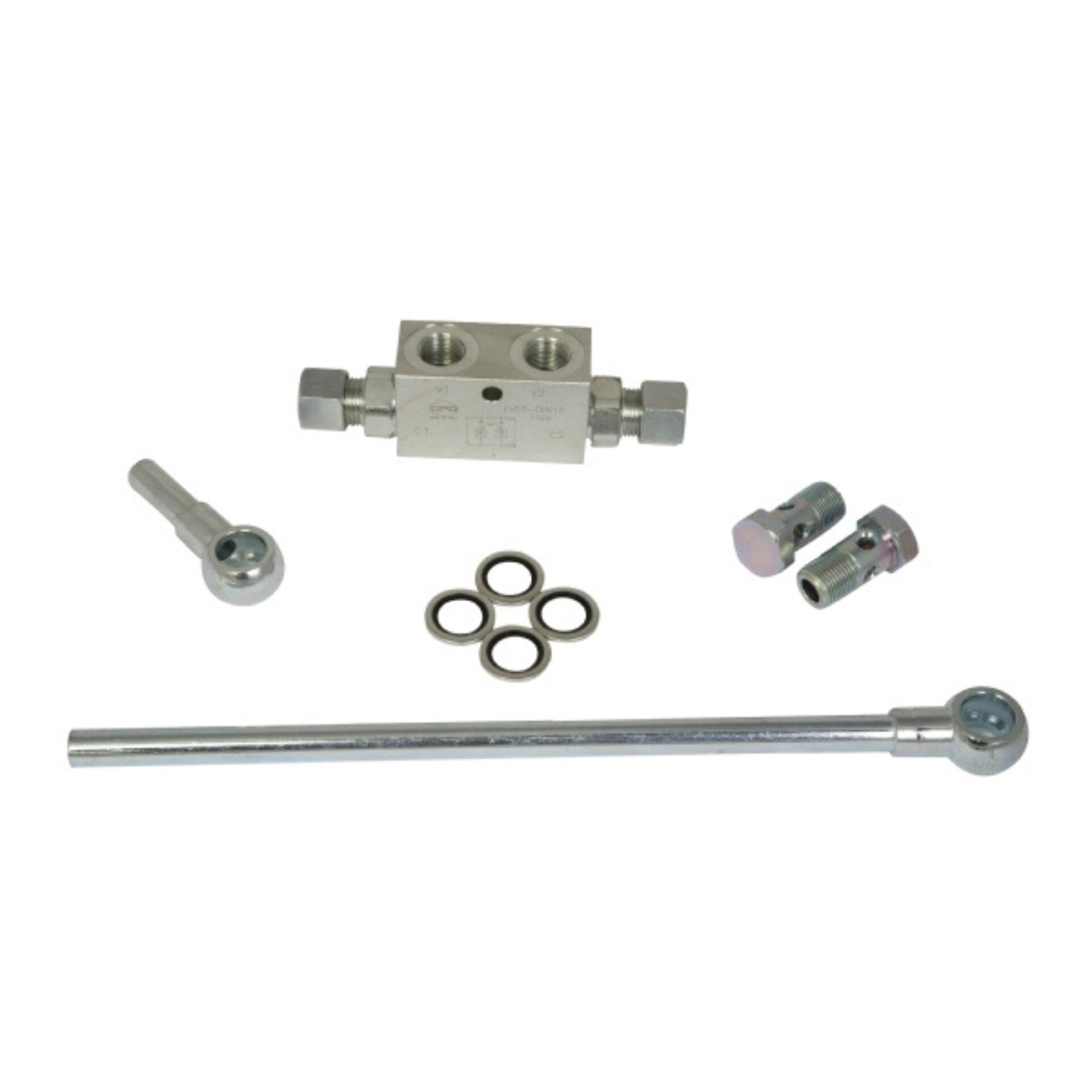

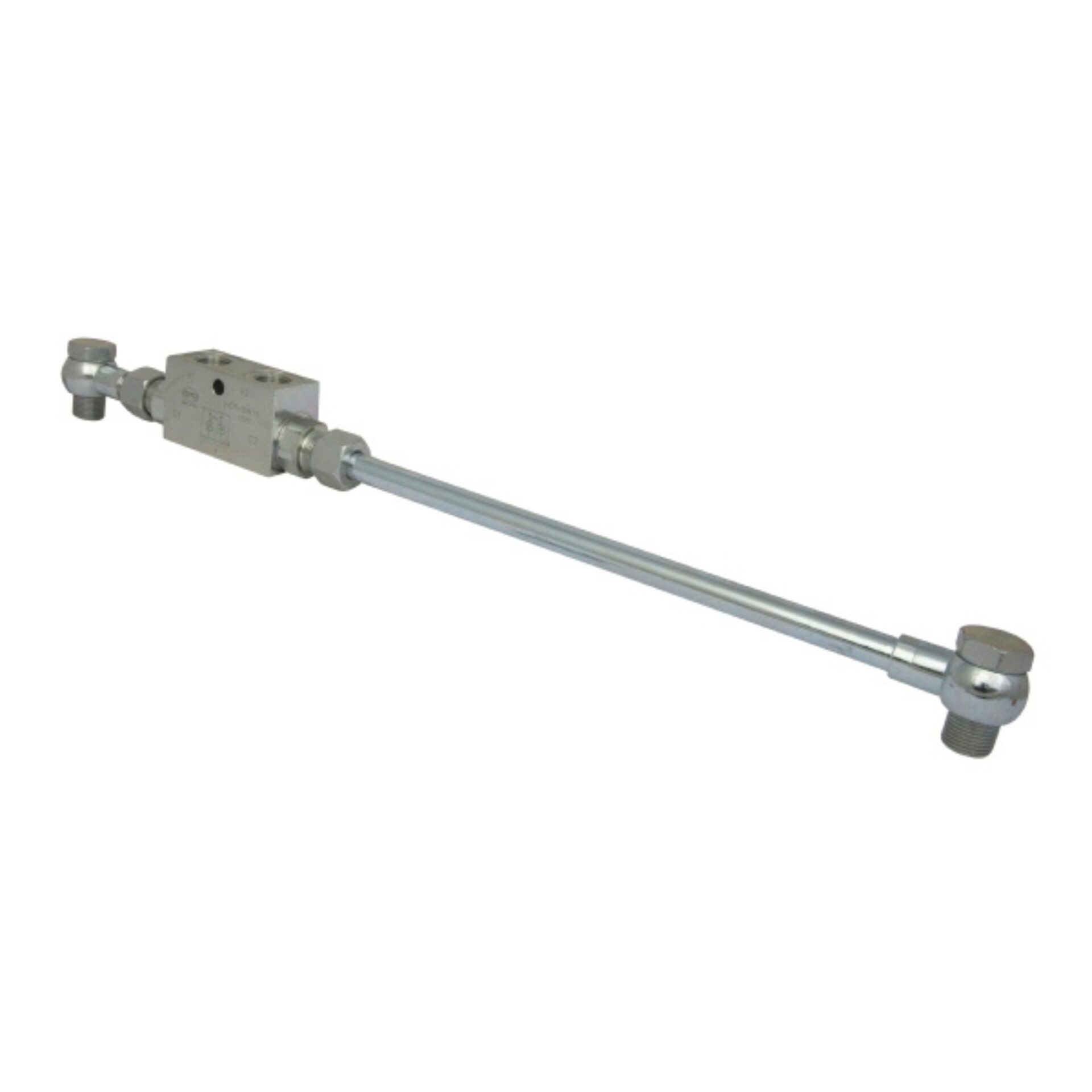

• Top Link Check Valve Kit
• Designed For: Rams up to 20″ and top links up 26″
• Max Pressure: 350 bar
• Flow Capacity: 30 litres per minute (lpm)
• Cracking Pressure: 4 bar
• Pilot Ratio: 1:4:6
• Port Size: 3/8 inch
• Material: Zinc-plated steel body
• Long Description:
  • Anti-Creep/Check Valve will prevent Hydraulic cylinders and Top Links from opening when used on tractors which may be experiencing internal valve leakage
  • Anti-Creep/Check Valve will also act as a safety device locking the cylinder in position in the event of a hose bursting or other failures in the hydraulic system
• Suitable for: Hydraulic cylinders with 3/8in ports up to 22in closed centre: i.e. G10852C
• Suitable for: Hydraulic top links with 3/8in ports up to 26in closed centre: i.e. G18622, G19001, G19002, G19004
• Weight: 1.001kg

Weight	1.001 kg
