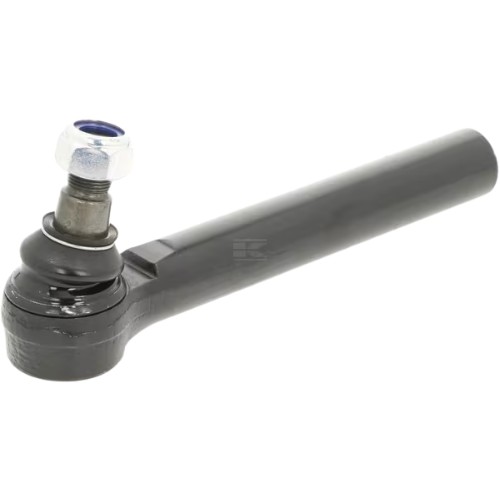

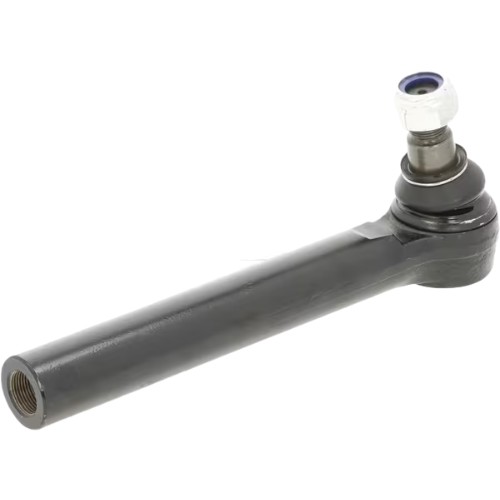

Tie Rod End RHS / LHS

Tie Rod End RHS / LHS

• Long description: Tie Rod End with Internal thread, short

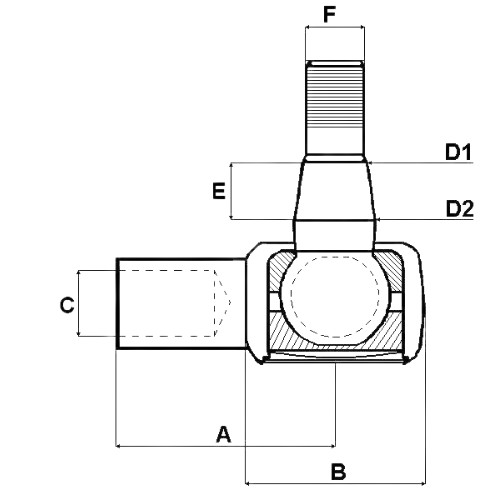

• A Working length: 260 mm
• F Thread type – end side (wheel): Metric
• C Thread type – rod side: Metric
• D1 Min. connection diameter: 23.5 mm
• D2 Max. connection diameter: 26.5 mm
• F Thread diameter – end side (wheel) (metric): M20
• C Thread diameter – rod side: M22
• Curved: No
• C Thread direction – rod side: Right
• F Thread direction – end side (wheel): Right
• E End cone length: 30 mm
• Total length: 260 mm
• B Head width: 35 mm
• Outside rod diameter: 36 mm
• Thread length – rod side: 80 mm
• Thread length – end side (wheel) (mm): 27.5 mm
• F Pitch of thread – end side (wheel) (mm): 1.50 mm
• C Thread pitch – rod side: 1.50 mm
• Original number equivalent: 37947900
• OEM: SHP564KR, 35728300, 3765929M1, 37947900, V35728300, V37947900, VPJ3618

Will Suit Valmet / Valtra Models

• 6000: 6200, 6250HI, 6300, 6350HI, 6400, 6550HI, 6850HI
• 8000: 8050, 8050E, 8050HI, 8050LS, 8150, 8150HI, 8150LS
• C: C100, C110, C120, C120E, C130, C150, C90
• M: M120, M120E, M130, M150
• N: N101 Classic, N101 HI-TEC, N111 Classic, N111 HI-TECH, N111E HI-TEC, N111E LS, N121 HI-TEC, N121 LS, N122 Direct, N122 Versu, N141 HI-TEC, N141 LS, N142 Direct (DANA – 733/523), N142 Versu (DANA – 733/523), N91 Classic, N91 HI-TEC
• T: T120, T130
• T2: T132 D/V (DANA – 733/523), T152 D/V (DANA – 733/523)
• TC/TCH: T120 C/CH, T121 H/C (DANA – 730/503 – 733/505), T130 C/CH, T131 H/C (DANA – 730/503 – 733/505)

Weight	2.78 kg
