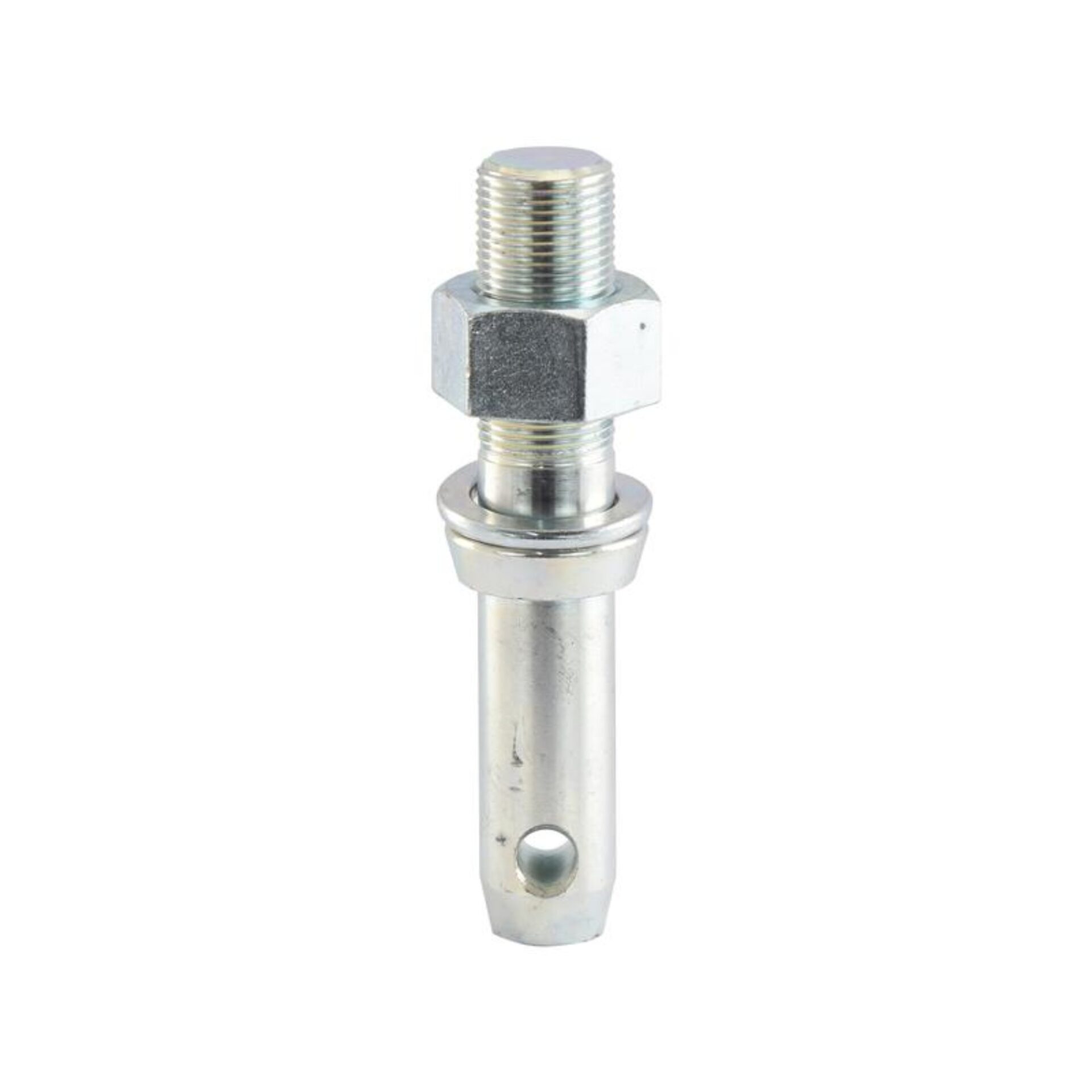

Lower link implement pin 28x159mm, Thread size 1-1/8x60mm Cat. 2 (Ø28mm)

Lower link implement pin 28x159mm, Thread size 1-1/8x60mm Cat. 2 (Ø28mm)

• Category: 2 (Ø28mm)

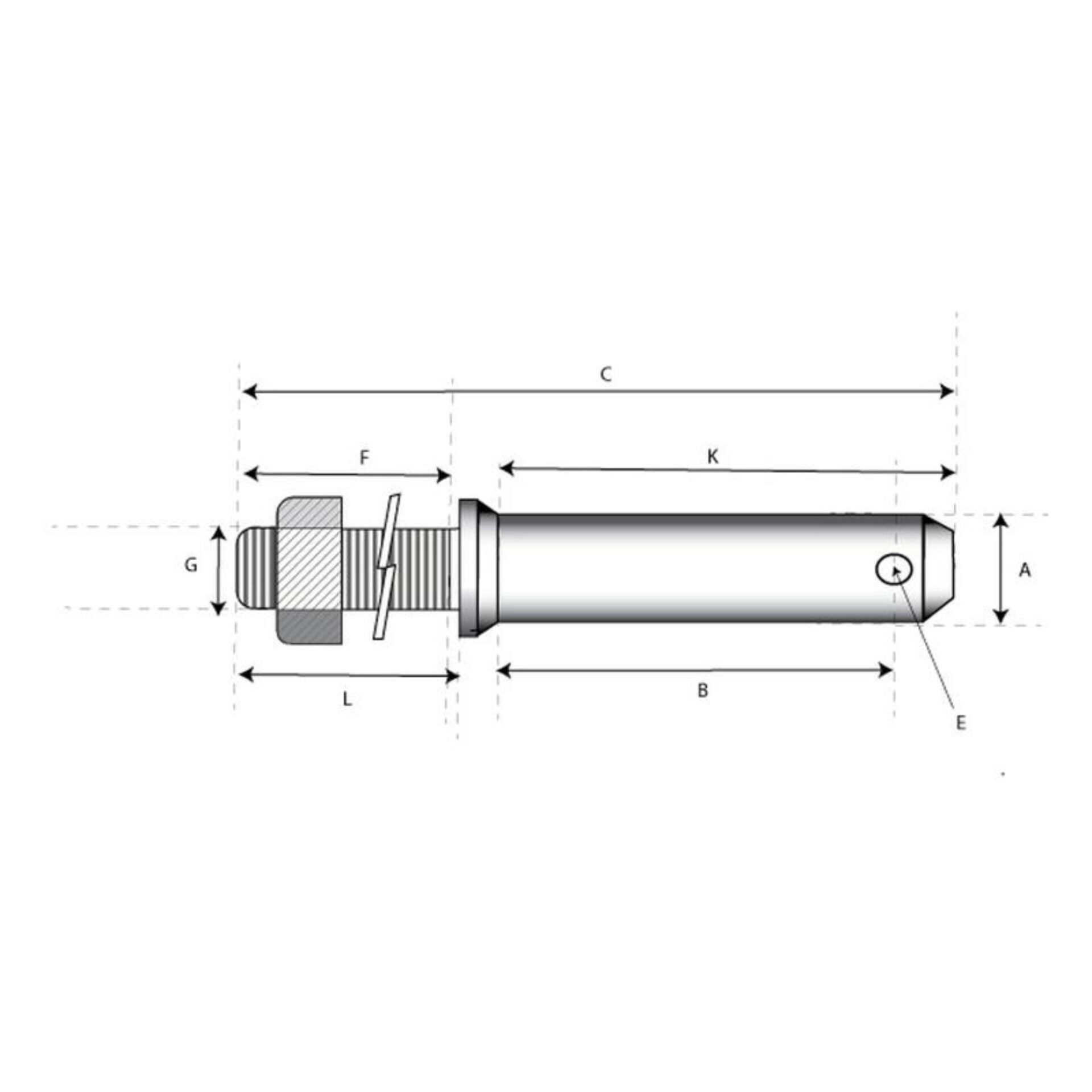

• Diagram specifications: (A) Pin Ø:28mm (1-1/8”) (B) Working length :57mm (2-1/4”) (C) Overall length:159mm (6-1/4) (E) Hole Ø :12mm (1/2”) /(F))Thread length:60mm (G) Thread size :1-1/8”
• Duty: Standard
• Hole Ø (ins): 1/2
• Hole Ø (mm): 12
• Material: EN8 Steel
• Overall length (ins): 6-1/4
• Overall length (mm): 159
• Pin Type: Implement Attachment
• Pin Ø (ins): 1-1/8
• Pin Ø (mm): 28
• Thread length (mm): 60
• Thread size: 1-1/8
• Thread type: UNF
• Working length (ins): 2-1/4
• Working length (mm): 57
