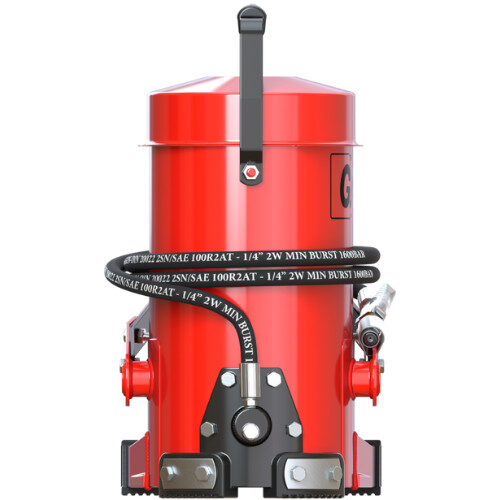

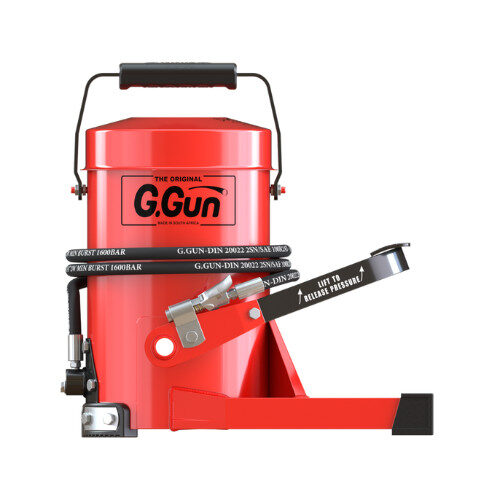

Gurtech High Pressure Foot Operated Grease Gun

Gurtech High Pressure Foot Operated Grease Gun – With 2 metre delivery hose and ‘G Coupler’ grease coupling

Supplied with grease scooper for mess free loading

Technical Specifications:

• Max Delivery Pressure 10,000 psi (690 Bar)
• Delivery Rate 0.09 oz (2.7 ml) per stroke
• Grease Compatibility NLGI consistency numbers 0, 1 and 2
• Canister Capacity 282 oz (8 kg)
• Delivery Hose 6.5 ft (2 m) x 1⁄4” (6.35 mm) 2 wire braided hose
• Delivery hose: 2 metre x 1/4″ – 2 wire
• Coupling thread: 1/8″ female
• Hose Thread 1/8” NPT (male)
• Dimensions L 181⁄2” x W 101⁄4” x H 161⁄2” (L 470 mm x W 260 mm x H 420 mm)
• Weight Dry weight 352 oz (10 Kg)
• Pump Activation Foot operated
• Pump Mechanism 2 stage self-priming with pressure return valve
• Grease Coupler Heavy-duty, high pressure.
• Trigger activated lock-on patented coupler

Grease Canister

• Holds 282 oz / 8 Kg grease
• Spend time greasing, not refilling.

Patented Lock-On Grease Coupler

• Ensures delivery into the joint & bearings, NOT around the Zerk
• Easy lock-on mechanism allows hands-free operation
• Easy clip-off, regardless of line pressure build-up.
• Combined with the Pressure Return Valve, you enjoy a near waste-free greasing system

Ergonomic Carry Handle

• Folds away for easy refilling

Patented Pressure Return Valve
Simply lift the foot treadle to return residual pressure back to the canister

• Saves grease
• Eliminates dribble and mess
• Extends grease coupler life
• Extends Zerk Nipple life

Foot Operated Treadle

• No more exhausted hands and arms
• Ergonomic operation

Rubber Foot Mounts

• Ensures grease gun remains stable while pumping

Weight	10 kg
Dimensions	47 × 26 × 42 cm
