Drawbar Frame Hitch System Cat 1

Drawbar Frame Hitch System Cat 1

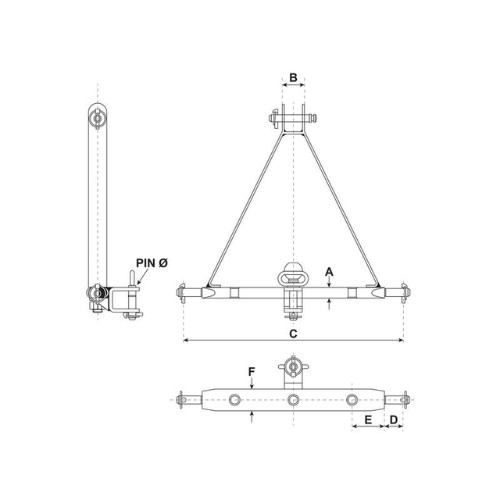

• A (mm): 30
• B (mm): 61.5
• Ball Size (ins): 2
• Ball Size (mm): 50
• C (mm): 610
• Category: 1 (Ø22mm)
• D (mm): 52
• E (mm): 90
• F (mm): 63
• G (mm): 22
• Hole centres (mm): 215
• Hole Centres Ins: 8-15/32
• Hole Ø (ins): 29/32
• Hole Ø (mm): 23
• Linch Pin Ø (mm): 10
• Maximum Towing Load: 2.5T
• Number of holes: 3
• Overall height (ins): 213/16
• Overall height (mm): 538
• Overall length (ins): 24-1/64
• Overall length (mm): 610
• Pin Ø (ins): 7/8
• Pin Ø (mm): 22
• Section (mm): 30×61.5
• Section ins: 1- x 2-
• Top Pin Diameter mm: 19
• Working length (ins): 2-1/16
• Working length (mm): 52
• Weight: 12.00kg

Notes: This item is for off-road use only

Weight	12 kg
