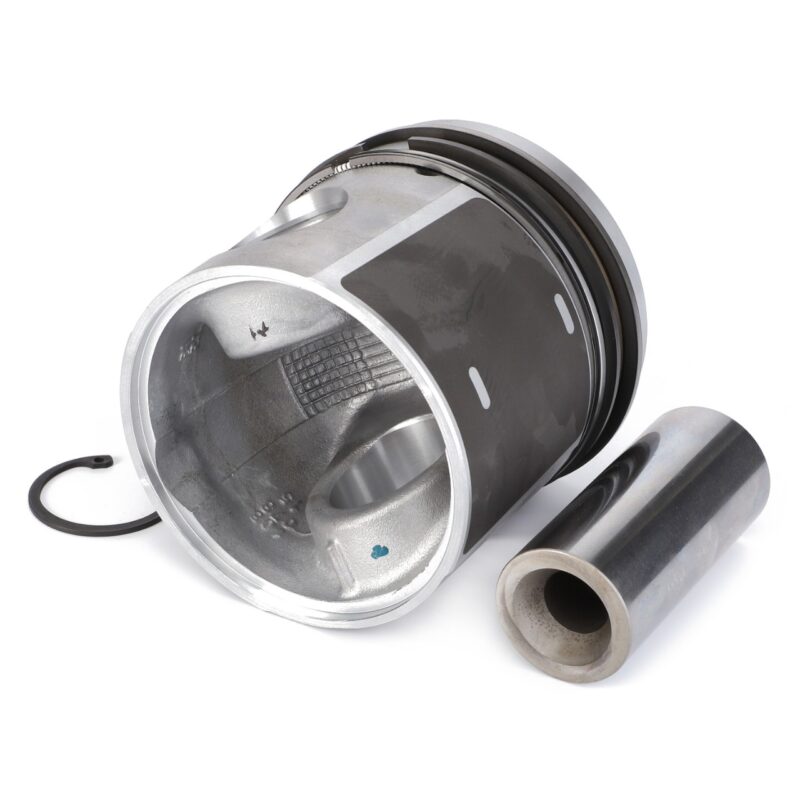

Valtra Piston Complete With Rings

Genuine AGCO Pistons are the number one choice for your engine. They are designed by experts for optimal combustion that leads to excellent performance and low emissions. AGCO Pistons are made from high quality materials for longevity and are precision machined to fit your engine perfectly. Their thermal properties are optimized for excellent heat transfer leading to a long service life.

Technical Information

• Weight (KG): 1.180000
• Piston Nominal Bore Size (mm): 108
• Piston Length (mm): 106.65
• Piston Compression Height (mm): 70.65
• Piston Bowl Depth (mm): 19.05
• Piston Pin Diameter (mm): 40
• Piston Pin Length: 89
• Piston Valve Seat Depth (mm): 0.8
• Piston Bowl Diameter (mm): 64.5
• Piston No. Rings: 3

Tractor Compatibility

• Case IH
  • CS Series: CS68, CS75, CS78, CS86, CS94, CS100, CS110, CS120, CS130, CS150
  • CVX Series: CVX120, CVX130, CVX150, CVX170
• Ford New Holland
  • 40 Series: 8240
• Massey Ferguson
  • 3000 Series: 3670, 3690
  • 5000 Series: 5470
  • 7000 Series: 7250, 7252, 7260, 7485, 7490, 7495
  • 8000 Series: 8140, 8150, 8240, 8450, 8460

Weight	1.18 kg
Fits	Valtra 8050, Valtra 8100, Valtra 8150
