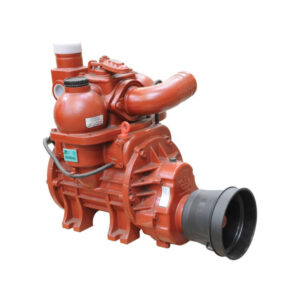

MEC 9000 Standard Vacuum Pump – PTO Driven

MEC 9000 Standard Vacuum Pump – PTO Driven

• The MEC II-series pumps have an automatic protection system. So, for example, if a vane breaks, the rotor and rotor housing can be protected by the rotor—including the flange mountings—being pushed downwards
• The operating time at -0.95 bar lasts from 8 minutes (standard) up to a maximum of 15 minutes. Continuous operation is permissible at -0.6 bar.
• MEC II-series pumps are supplied with long-life (heat-resistant) vanes as standard
• MEC II-series pumps feature a temperature meter to enable the temperature to be read during operation
• A maintenance hatch can be used to determine the wear condition of the vanes, indicating when the vanes need to be replaced
• Each pump is subjected to a final check in the factory, in which the vacuum, compression and lubrication are tested, among other factors
• A test report relating to the serial number is drawn up for each pump

Specifications:

• Drive Type – PTO 540rpm
• Max Vacuum – 0.95 Bar
• Max Relative Pressure – 1.5 BAR
• Power requirement for max pressure – 36kW
• Power requiremnet for max vacuum – 17kW
• Diameter of Hose Connection – 80mm
• Safety valve connection diameter – 2inch
• Depression Valve Connection Diameter – 1-1/2inch
• Total Length – 670mm
• Total width – 390mm
• Height – 605mm
• Weight – 145kg

Weight	145 kg
Dimensions	67 × 39 × 60.5 cm
