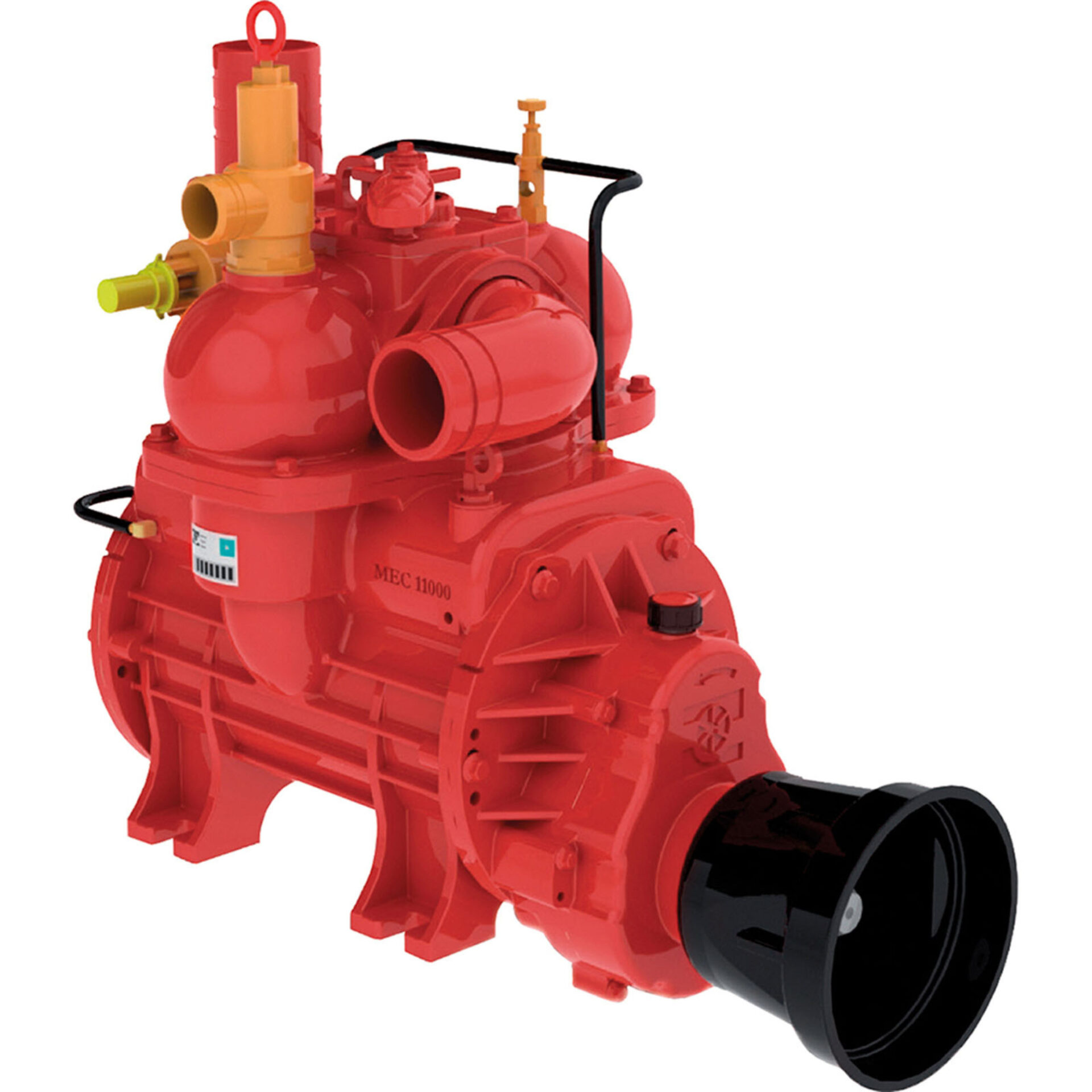

MEC 11000 Standard Vacuum Pump (Series II)

MEC 11000 Standard Vacuum Pump (Series II)

• Supplied without safety and decompression valves
• Mechanical drive
• Maximum flow rate: 11137 lpm
• Maximum RPM: 600 rpm
• Maximum absolute pressure: 2.5 bar (36 psi)
• Maximum relative pressure: 1.5 bar (21 psi)
• Vacuum with depression valve fitted: -0.80 bar
• Max vacuum: -0.95 bar
• Power absorption @ 1.5 bar absolute, 540 rpm: 21 kW
• Power absorption @ 1.5 bar relative, 540 rpm: 40 kW
• Power absorption @ 1.5 bar absolute, 1000 rpm: 21 kW
• Power absorption @ 1.5 bar absolute, 1000 rpm: 40 kW
• Shaft EN ISO 500 Ø: 1 3/8″ – 6 spline
• Rotation: Anti-Clockwise
• Lubrication: Manual lubrication
• Oil Tank Capacity (ltrs.): 3L
• Not supplied with 2” Pressure Relief Valve
• Drive Type: PTO driven
• Nett weight: 160 kg

Weight	160 kg
