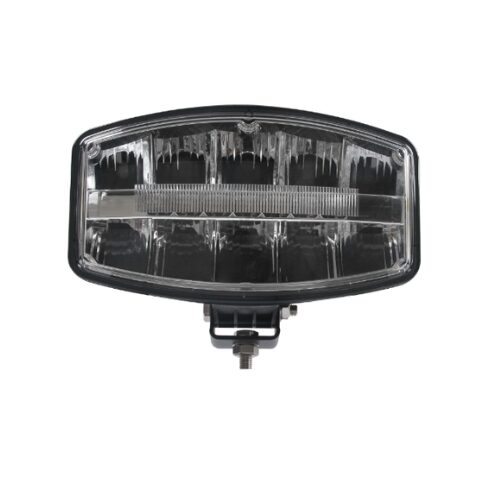

LED Driving & Position Lamp
Brands: 24/7 Lighting
SKU: WD-CA6169
This lamp is manufactured and designed using the latest cutting-edge technology. It has an exclusive style that transforms the look of any vehicle giving it a distinctive presence on the road. The LED Driving & Position Lamp stands out for its high performance and intense light output producing 2800 lumens, from an array of low wattage LEDS – with an effective draw of only 31.5W. With solid Die Cast Aluminium Housing, toughened Polycarbonate Lens, and rigorous testing to achieve a high rating of IP69K & EMC CISPR25 CLASS 5 – the CA 6169 ensures resistance to the elements
- 2800 Lumens + 196 Lumens
- Effective Draw 31.5W
- DRV: 12 LEDs x 4W (48W) + POS: 9 x 0.5W (4.5W)
- Nominal Current @ 12V: DRV: 2.51A, POS: 0.125A
- Nominal Current @ 24V: DRV: 1.25A, POS: 0.0625A
- Rated IP66 / IP6K9K
- Housing: Graphene
- Lens: Anti-UV PC with hardening process
- Stainless Steel Mount, M8 / M10 Bolt
- Built in Plug-In Connector
- Illumination Angle: (H) 22° @1000CD, (V) 5° @1000CD
- 275m Light Distance
- Driving & Position Light Beam
- Cable Length: 400mm

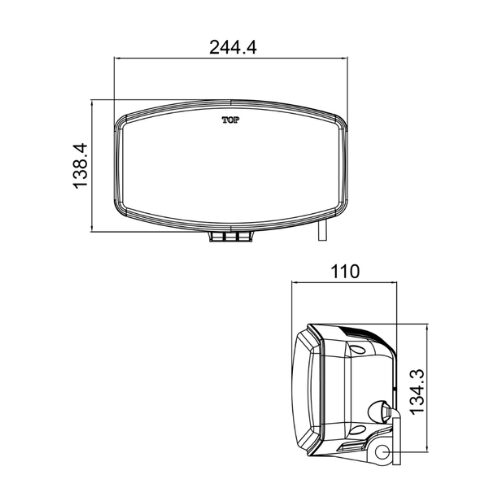

- 244.4mm (L) x 138.4mm (W) x 110mm (H)
- ECE Reg 112/ Reg 149 (Driving Lamp) / R148 (Position Lamp)
- ECE Approved REG 10
- EMC CISPR25 CLASS 5
- Operating Temp: -40ºC to +50ºC
€61.50 Â inc VAT
1 in stock
